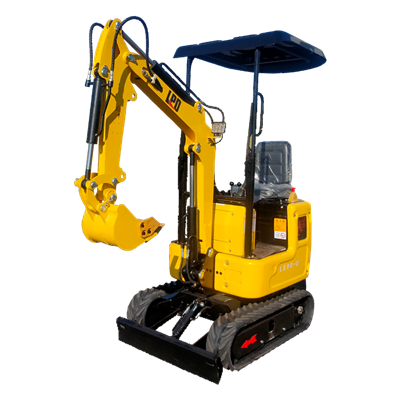

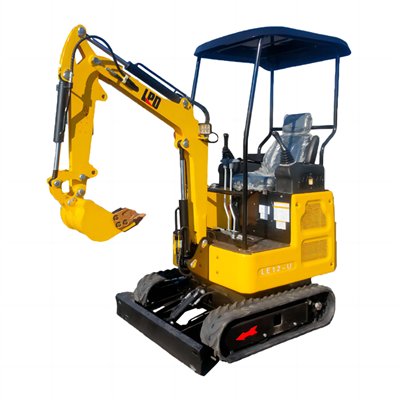

Euro V Engine CE Mini Excavator
All the members in LAPUDA excavator family are approved by CE certificate. And EURO V engine is available for all the machines. All of the LPD series mini Excavator are popular in Europe.
Description
Description
All the members in LAPUDA excavator family are approved by CE certificate. And EURO V engine is available for all the machines. All of the LPD series mini Excavator are popular in Europe.
You may find the data sheet for some models of our excavators as below.
|
Model |
LE10 |
LE12 |
LE15 |
LE18 |
|
|
General Info |
Net weight (kg) |
980 |
1120 |
1450 |
1810 |
|
Bucket capacity (m³) |
0.03 |
0.04 |
0.04 |
0.04 |
|
|
Dimension |
Transport length (mm) |
2450 |
2280 |
2400 |
3608 |
|
Transport width (mm) |
930 |
800-1040 |
1100 |
990 |
|
|
Transport height (mm) |
1550 |
2180 |
2200 |
2375 |
|
|
Min. ground clearance (mm) |
246 |
246 |
246 |
150 |
|
|
Total length of track (mm) |
1200 |
1200 |
1300 |
1585 |
|
|
Track shoe width (mm) |
180 |
180 |
180 |
230 |
|
|
Boom length (mm) |
1350 |
1350 |
1350 |
1830 |
|
|
Length of bucket rod (mm) |
700 |
700 |
700 |
950 |
|
|
Dozer blade width*height (mm) |
930*180 |
1040*180 |
1100*210 |
1100*210 |
|
|
Engine |
Model |
Kubota,D722 |
Kubota,D722 |
Kubota,D722 |
Yanmar,3TNV70 |
|
Emission standard |
EURO V |
EURO V |
EURO V |
China III |
|
|
Cylinder |
3 |
3 |
3 |
3 |
|
|
Cooling mode |
Water-cooling |
Water-cooling |
Water-cooling |
Water-cooling |
|
|
Strokes |
4 |
4 |
4 |
4 |
|
|
Bore*stroke(mm) |
67*68 |
67*68 |
67*68 |
70*74 |
|
|
Power (kw) |
8.9@2200rpm |
8.9@2200rpm |
8.9@2200rpm |
12@2200rpm |
|
|
Displacement(L) |
0.719 |
0.719 |
0.719 |
0.854 |
|
|
Working parameters |
Max.digging radius (mm) |
2850 |
2850 |
2900 |
3850 |
|
Max. digging depth(mm) |
1600 |
1600 |
1700 |
1910 |
|
|
Max. digging height(mm) |
2500 |
2650 |
2500 |
3540 |
|
|
Max. unloading height(mm) |
1750 |
1830 |
1750 |
2243 |
|
|
Walking speed (km/h) |
0-5 |
0-5 |
0-5 |
0-5 |
|
|
Gradeability |
0-45% |
0-45% |
0-45% |
0-45% |
|
|
Oil tank |
Fuel tank volume (L) |
5.5 |
8 |
12 |
19 |
|
Hydraulic oil tank volume (L) |
12.5 |
12.5 |
12.5 |
13 |
|
|
Hydraulic system |
Rated flow (L/min) |
5 |
6 |
6 |
8 |
|
Working pressure (MPa) |
20 |
20 |
20 |
20 |
|
|
Swing system pressure (MPa) |
24 |
24 |
26 |
26 |
|
|
Others |
- Sun canopy is available. |
- Cab with air heater is available. |
|||
More details, please contact us. We always provide the mini excavators with good quality, good after-sale service and cheap price. Please contact us for more details about mini excavators.
